9j) T9x - Backlight moding for control by Er9x

Monday, 09. May 2011 00:00

Author: Skiner, RiMr


Skiner's instructions for moding Backlighting from HobbyKing, for backlight control by Er9x. Now with my movie with detailed instruction.

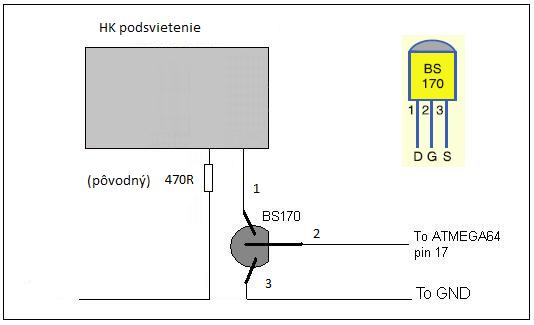

Moding a standard Backlighting from Hobbyking for Er9x, with transistor BS170


We can buy 3 colors of backlighting:
Blue: Turnigy 9X LCD Backlight Kit - Blue (DIY)
Green: Turnigy 9X LCD Backlight Kit - Green (DIY)
White: Turnigy 9X LCD Backlight Kit - White (DIY)


Look on this video, I hope it will be understandable. And, again!!!

BE VERY CAREFUL!!!
ALL WORK IS ON YOUR RISK!!!
IF YOU HAVE NOT EXPERIENCES WITH SOLDERING, DON'T DO IT!!!
YOU MUST HAVE SPECIAL TOOLS!!!
DON'T USE A STANDARD TRANSFORMER SOLDERING IRON/GUN!!!

So here´s the video..


Note: If you´re using Internet Explorer and all you can see is just a frame with little "X" in the top corner, your Flash in IE is dated. You can download actual in official Adobe site (instal and restart the computer)
http://get.adobe.com/cz/flashplayer/?promoid=DAFYL
or use another browser like Firefox, Opera, Chrome, Safari...

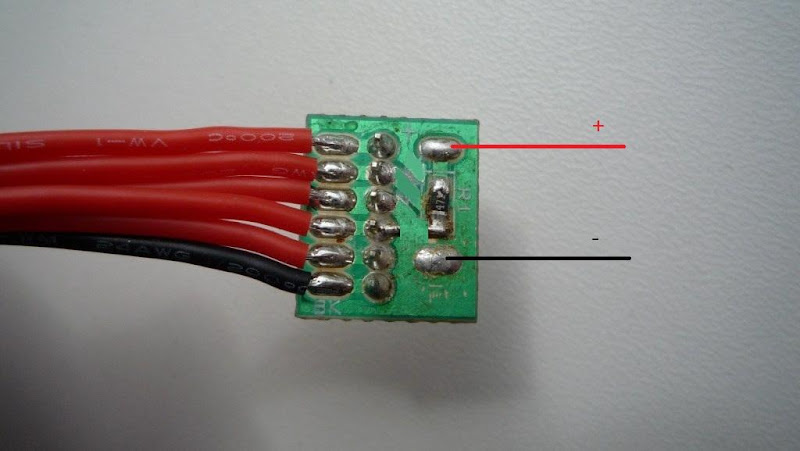

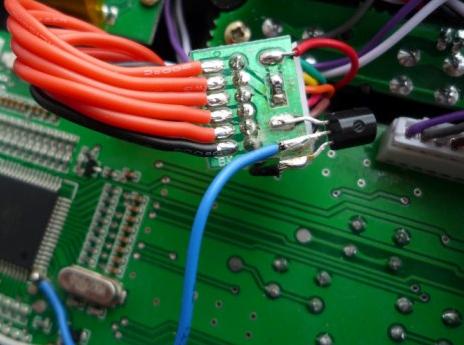

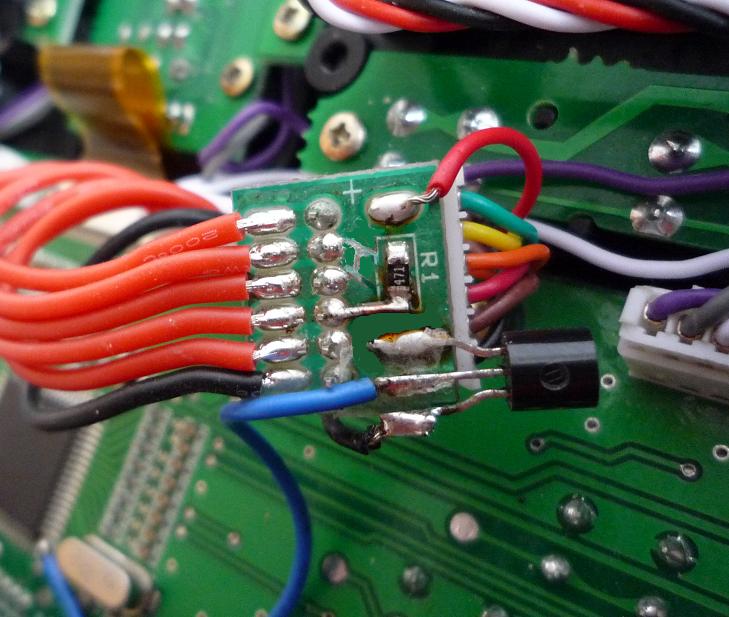

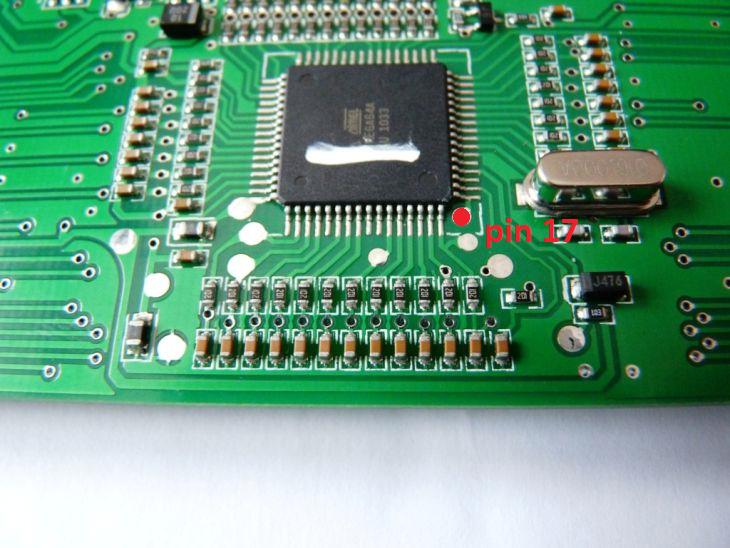

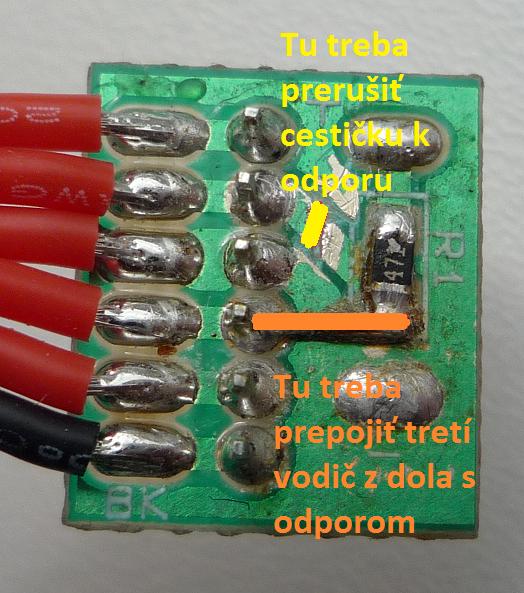

You can look here, in this gallery are high-resolution pictures of smal PCB, installation scheme and more.
T9x - TH9X - ER9x - Backlighting installation (direct link or gallery)


(Note:
Any mentions or questions write to comments under this article, please. Thank you!
